Heat-Resistant Standard Grade | -GGF

Applicable Standard
KS C 1609 (Compensating Cables for Thermocouples)
Operating Temperature
0~200℃
CATALOG
Product Features & Applications Materials & Construction Specifications
Product Features

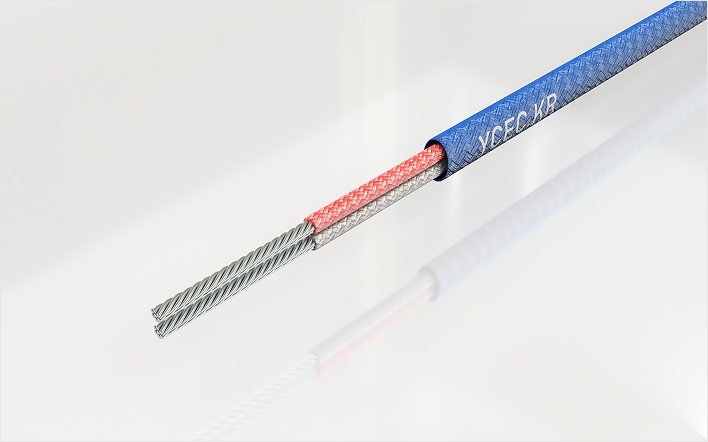

This product uses glass fiber braided insulation and sheath.
Excellent heat resistance enables use in high-temperature environments while maintaining stable insulation performance.
Superior chemical resistance provides durability against general chemicals and contaminants.
Not suitable for water resistance; prolonged use in humid environments may reduce insulation performance.
Applications / Industries
Used in process facilities requiring factory automation, process control, and thermal management, such as plants, power stations, steel mills, and petrochemical plants.
Primarily used in high-temperature environments such as blast furnaces, heating furnaces, and heat treatment processes.
Used for temperature monitoring of high-temperature components such as boilers and turbines.
Materials & Construction
Conductor : Conductor type according to thermocouple type
Insulation : Glass Fiber / Color ((+) Red, (-) White)
Sheath : Glass Fiber / Color (according to compensating cable color code)
Cross Section
Type Cond. Insul
(mm)		 Sheath
(mm)		 OD
(mm)		 IR
(MΩ/km)		 Wt
(kg/300M)
Area Strand Dia
(Type)X-H-GGF 2.0 7/0.6 1.8 0.32 0.35 3.14 X 5.58 Min. 5 15
1.25 7/0.45 1.35 0.32 0.35 2.69 X 4.68 Min. 5 9
0.5 7/0.3 0.9 0.32 0.35 2.24 X 3.78 Min. 5 5.5
