Multi-core Compensating Cable (Single & Multi-pair) |
-OS (Overall Shield)

Applicable Standards
KS C 1609 / ASTM E230 (ANSI)/ IEC 60584-3
Operating Temperature
-10 ~ 90°C
CATALOG
Product Features, Applications Materials and Structure Specification Table
Product Features

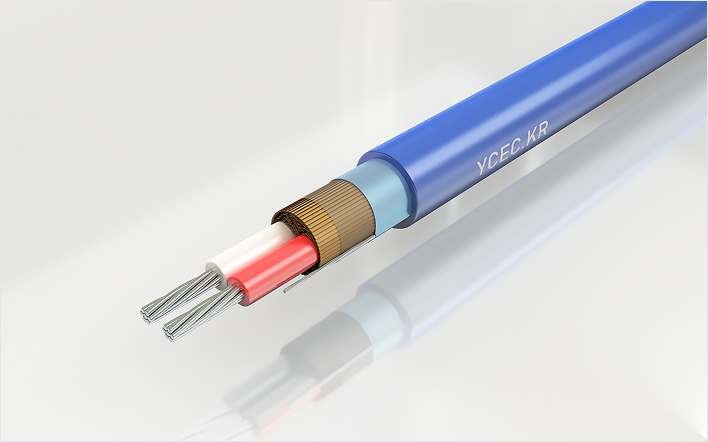

A product with PVC insulation and sheath applied, and an aluminum Mylar tape shielding layer added inside the sheath.
The shielding layer minimizes noise such as electromagnetic interference (EMI), radio frequency interference (RFI), and static electricity, providing stable temperature measurement.
Aluminum Mylar shielding is lighter and more economical than metal shielding.
Used together with a grounding wire to maximize shielding effectiveness.
Excellent water resistance and abrasion resistance, and has chemical resistance and oil resistance.
Applications/
Industries
Used in process equipment requiring factory automation, process control, and thermal management such as plants, power plants, steel mills, and petrochemical plants.
Mainly used in environments with a high possibility of electromagnetic interference such as power plants and substations, or in plant and factory lines where signal interference is a concern.
Used in electronic devices and communication equipment where prevention of signal interference and stable data transmission are required.
Materials and Structure
Conductor: Conductor type by thermocouple type
Insulation: Vinyl (PVC), PE/XLPE, etc.
Ground wire: Tinned annealed copper wire
Shield: Al/Mylar Tape / Tinned copper braid (SB)
Sheath: Vinyl (PVC) / Color (according to compensating cable color table)

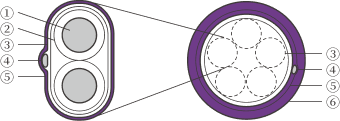

Cross Section
Type Cond. Insul
(mm)		 Sheath
(mm)		 OD
(mm)		 Volt
(V/min)		 IR
(MΩ/km)		 Wt
(kg/300M)
Area Strand Dia
(Type)X-H-KKR 0.5 20/0.18 0.9 0.6 1 6.3 AC 500 Min. 500 11
(Type)X-H-FKR 0.5 45/0.12 0.9 0.33 0.8 4.7 AC 500 Min. 500 8.2
0.22 20/0.12 0.62 0.25 0.7 3.7 AC 500 AC 500 4.5
※ UL product available
