T/C Extension & Compensating Wires

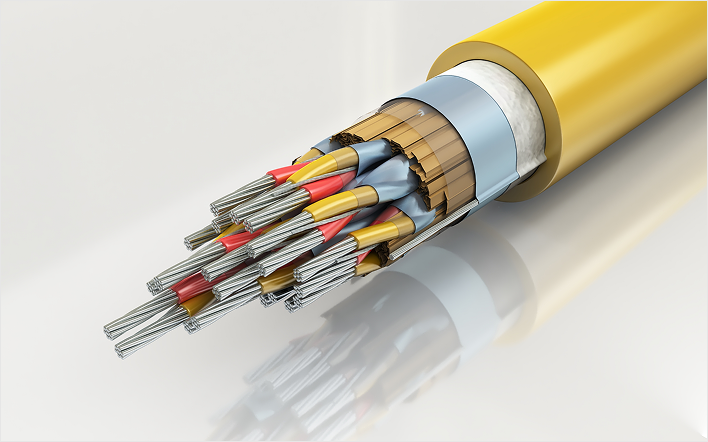

Product Features: This multi-pair product uses PVC insulation and sheath with both individual and overall shielding applied using aluminum Mylar tape.

The shielding layers minimize noise such as electromagnetic interference (EMI), radio frequency interference (RFI), and static electricity, ensuring stable temperature measurement.

Used together with a drain wire to maximize shielding effectiveness.

Individual shielding minimizes interference between multiple signals.

Excellent water resistance and abrasion resistance, with strong chemical and oil resistance.

Applications / Industries: Used in process facilities requiring factory automation, process control, and thermal management, such as plants, power stations, steel mills, and petrochemical plants.

Mainly used in environments with high electromagnetic interference, such as power plants, substations, and industrial plant lines where signal interference is a concern.

Used in factory control systems where multiple sensor signals must be processed simultaneously.

Used in electronic and communication systems where stable data transmission and noise prevention are required.

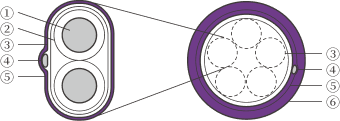

Materials & Construction: Conductor : Conductor type according to thermocouple type

Insulation : PVC, PE / XLPE, etc.

Drain Wire : Tinned copper stranded wire

Binder : Polyester tape

Individual Shield : Al/Mylar Tape

Overall Shield : Al/Mylar Tape / Tinned copper braid (SB)

Sheath : PVC / Color (according to compensating cable color code)

Type	Cond.			Insul (mm)	Pairs	Shd OD (mm)	Sheath (mm)	OD (mm)	Volt (V/min)	IR (MΩ/km)	Wt (kg/300M)
Type	Area	Strand	Dia	Insul (mm)	Pairs	Shd OD (mm)	Sheath (mm)	OD (mm)	Volt (V/min)	IR (MΩ/km)	Wt (kg/300M)
(Type)X-G- V(C)VAMSR	0.5	7/0.3	0.9	0.5	2	8.6	1.2	11.0	AC 500	Min. 500	130
					6	12.4	1.3	15.0			255
					10	16.5	1.5	19.5			395
					20	21.8	1.6	25.0			665
					30	25.9	1.8	29.5			980
	1.0	7/0.43	1.29	0.6	2	10.8	1.5	13.8	AC 500	Min. 500	200
					6	16.0	1.5	19.0			395
					10	20.8	1.5	24.0			595
					20	27.7	1.9	31.5			1050
					30	33.3	2.1	37.5			1540
	1.25	7/0.43	1.35	0.6	2	11.0	1.5	14.0	AC 500	Min. 500	215
					6	16.0	1.5	19.0			420
					10	21.3	1.5	24.5			635
					20	28.2	1.9	32.0			1105
					30	33.8	2.1	38.0			1630
	1.5	7/0.53	1.59	0.6	2	12.0	1.5	15.0	AC 500	Min. 500	240
					6	18.0	1.5	21.0			485
					10	23.1	1.7	26.5			760
					20	30.5	2.0	34.5			1340
					30	36.6	2.2	41.0			1960

*UL-certified products available upon request
