T/C Extension & Compensating Wires

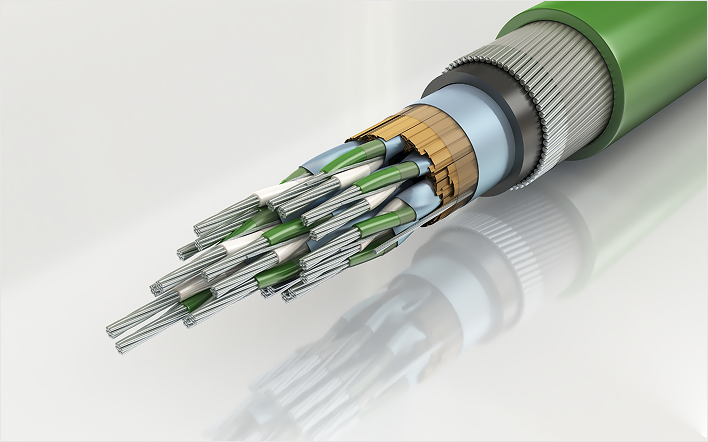

Product Features: A multi-pair product with PVC insulation and sheath, individual and overall shielding using aluminum Mylar tape, with bedding and steel wire armor added.

The shielding layer minimizes noise such as electromagnetic interference (EMI), radio frequency interference (RFI), and static electricity, providing stable temperature measurement.

Used together with a grounding wire to maximize shielding effectiveness.

Individual shielding minimizes interference between multiple signals.

Steel wire armor provides strong resistance to physical damage and excellent durability.

Excellent water resistance and abrasion resistance, with chemical resistance and oil resistance.

Applications/ Industries: Used in process equipment requiring factory automation, process control, and thermal management such as plants, power plants, steel mills, and petrochemical plants.

Mainly used in environments with a high possibility of electromagnetic interference such as power plants and substations, or in plant and factory lines where signal interference is a concern.

Used in electronic devices and communication equipment where signal interference prevention and stable data transmission are required.

Used in manufacturing, mining, and construction industries where physical shock or vibration is high.

Used in marine and shipbuilding industries where cable protection performance is essential.

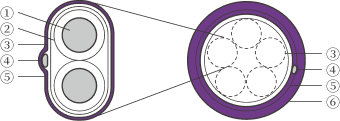

Materials and Structure: Conductor: Conductor type by thermocouple type

Insulation: Vinyl (PVC), PE/XLPE, etc.

Ground wire: Tinned annealed copper wire

Binder: Polyester tape

Individual Shield: Al/Mylar Tape

Overall Shield: Al/Mylar Tape / Tinned copper braid (SB)

Bedding: Vinyl (PVC), etc.

Steel Wire Armor: Galvanized steel wire

Sheath: Vinyl (PVC) / Color (according to compensating cable color table)

Type	Cond.			Insul (mm)	Pairs	Shd OD (mm)	Bed (mm)	Arm (mm)	Sheath (mm)	OD (mm)	Volt (V/min)	IR (MΩ/km)	Wt (kg/300M)
Type	Area	Strand	Dia	Insul (mm)	Pairs	Shd OD (mm)	Bed (mm)	Arm (mm)	Sheath (mm)	OD (mm)	Volt (V/min)	IR (MΩ/km)	Wt (kg/300M)
(Type)X-G- V(C)VWAV-AMSR	0.75	7/0.37	1.11	0.6	1	5.7	0.9	0.9	1.3	12.5	AC 500	Min. 500	285
					2	10.3	1.0	0.9	1.4	17.5			500
					10	19.4	1.3	1.6	1.7	29.0			1460
					20	25.0	1.5	1.6	1.8	35.5			2085
	1.0	7/0.43	1.29	0.6	1	6.2	0.9	0.9	1.3	13.0	AC 500	Min. 500	310
					2	10.5	1.0	0.9	1.4	18.0			515
					10	19.4	1.3	1.6	1.7	29.5			1500
					20	25.0	1.5	1.6	1.9	35.5			2175
	1.5	7/0.53	1.59	0.6	1	6.7	0.9	0.9	1.3	14.0	AC 500	Min. 500	345
					2	11.5	1.0	0.9	1.4	18.5			570
					10	21.7	1.4	1.6	1.8	31.5			1750
					20	28.1	1.7	2.0	2.0	40.5			2890

※ UL product available
