T/C Extension & Compensating Wires

T/C Extension & Compensating Wires

General Purpose Standard Grade | -VVF

Applicable Standard
KS C 1609 (Compensating Cables for Thermocouples)
Operating Temperature
-10~70℃
CATALOG
Product Features & Applications Materials & Construction Specifications
Product Features
This product uses PVC insulation and sheath.
Excellent water resistance and abrasion resistance, with strong chemical and oil resistance.
High durability and flexibility make installation and wiring easy.
Offers excellent durability and stability at a reasonable cost, making it widely used in general applications.
With HR-PVC, continuous operation is possible even in environments up to 90℃.
Applications / Industries
Used in process facilities requiring factory automation, process control, and thermal management, such as plants, power stations, steel mills, and petrochemical plants.
Used in HVAC equipment, temperature control systems, and internal sensors of home appliances.
Used in temperature testing equipment and research devices.
Also used for temperature measurement and monitoring in environments below 70℃.

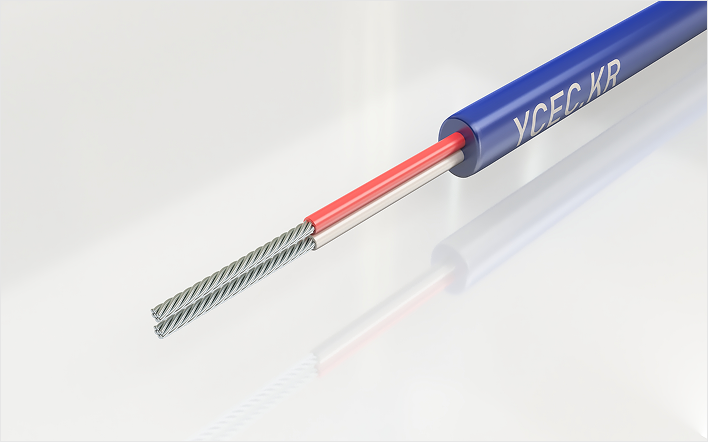

Materials & Construction
Conductor : Conductor type according to thermocouple type
Insulation : PVC / Color ( (+) Red, (-) White )
Sheath : PVC / Color (according to compensating cable color code)
Cross Section
Type Cond. Insul
(mm)		 Sheath
(mm)		 OD
(mm)		 Volt
(V/min)		 IR
(MΩ/km)		 Wt
(kg/300M)
Area Strand Dia
(Type)X-G-VVF 2.0 7/0.6 1.8 0.6 0.9 4.8 X 7.8 AC 500 Min. 50 21.5
1.25 7/0.45 1.35 0.6 0.9 4.35 X 6.9 AC 500 Min. 50 16
0.5 7/0.3 0.9 0.35 0.7 3.0 X 4.6 AC 500 Min. 50 7
*UL-certified products available upon request
