RTD | TW3-S

Applicable Standard
Manufacturer Standard Specification
Operating Temperature
-80~200℃
CATALOG
Product Features & Applications Materials & Structure Specifications
Product Features
RTD sensors (Pt100Ω, etc.) measure temperature based on resistance changes according to temperature variations and are connected to measuring equipment through RTD lead wires.
RTD lead wires are available in 2-wire, 3-wire, and 4-wire types. Among them, the 3-wire type, consisting of two signal wires and one compensation wire, is the most commonly used in industrial temperature measurement.
Provides more precise temperature measurement compared to thermocouple sensors. However, the measurable temperature range is relatively limited.
Applications / Industries
Used in industries requiring accurate temperature measurement such as industrial automation, power plants, semiconductor and electronic equipment, aerospace and military equipment, laboratories, and precision instruments.

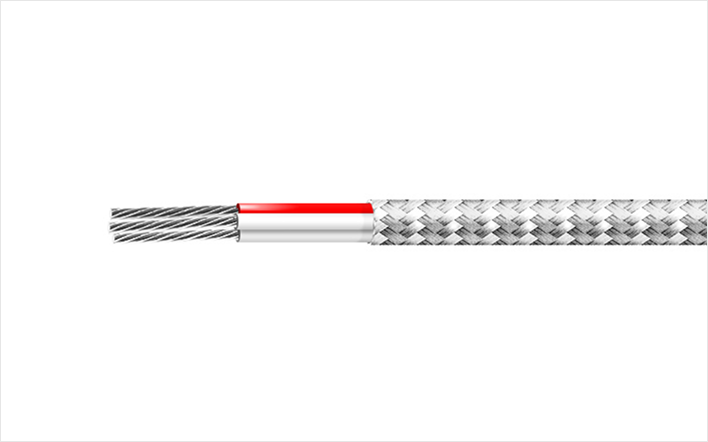

Materials & Structure
Conductor : Tinned Copper Wire
Insulation : Fluororesin (FEP)
Shield : Tinned Copper Braid
Product Name Conductor Insulation Material Sheath Material Shield Overall Diameter
(mm)		 Weight
(kg/200M)
Cross Section
(mm²)		 Construction
(No./mm)		 Insulation Thickness
(mm)		 Sheath Thickness
(mm)		 Shield Thickness
(mm)
TW3-S 0.3 12/0.18 Fluororesin Copper Braid - 3.0 5.0
0.25 0.3 -
