High Temperature UL | UL5562

Applicable Standard
UL 758, UL 1581
Maximum Temperature
550°C
CATALOG
Product Features & Applications Materials & Structure Specifications
Product Features
Mica tape insulation and glass fiber braid sheath are applied.
UL certified product rated at 600V and 550°C.
Applications / Industries
Mainly used for internal wiring of equipment in high-temperature environments below 550°C.
Used in steel mills, steelmaking processes, incinerators, and chemical plants where high heat resistance is required.
Suitable for stable data transmission in high-temperature environments in aerospace applications.

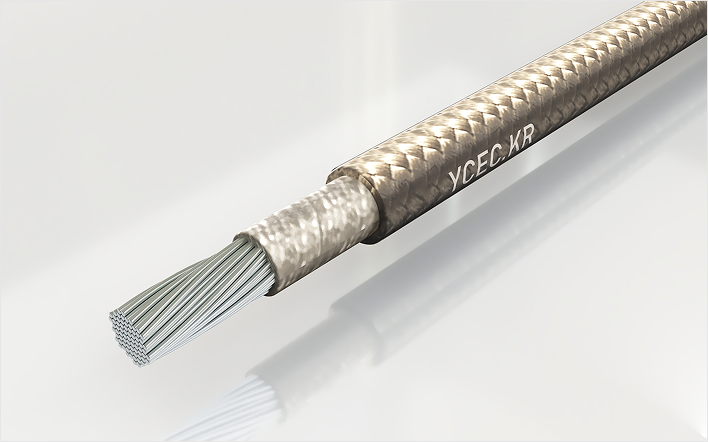

Materials & Structure
Conductor : Nickel-plated Copper Wire
Insulation : Mica Tape
Braid : Fiberglass Braid with High Temperature Resistant Finish
Conductor Insulation Thickness
(mm)		 Braid Thickness
(mm)		 Overall Diameter
(mm)
Size
(AWG)		 Conductor Construction
(Strands / Diameter)
24 7/0.2 0.61 0.20 2.3 ±0.1
22 7/0.254 2.5 ±0.2
20 10/0.254 2.6 ±0.2
18 16/0.254 2.9 ±0.3
16 26/0.254 3.2 ±0.3
14 41/0.254 3.6 ±0.3
12 65/0.254 4.1 ±0.3
10 103/0.254 0.89 0.25 5.6 ±0.5
8 163/0.254 6.5 ±0.5
6 260/0.254 7.6 ±0.5
4 413/0.254 8.9 ±0.5
