PT Sensor

PT Sensor

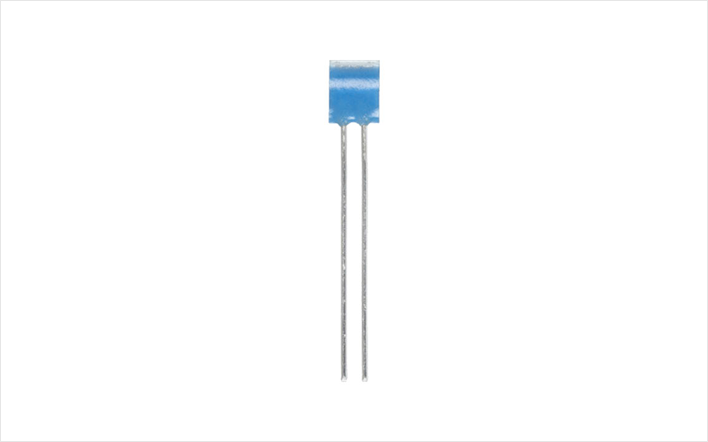

Lead Wire Type C (Cryo)

CATALOG
Applications Materials & Structure Specifications
Applications
Cryogenic applications (analytical equipment, chemical, power generation, plant, aerospace)
Materials & Structure
Temperature Range : -196℃ ~ +150℃
Standard Specification : DIN EN 60751
Tolerance : Class F 0.3 (B Class)
Temperature Coefficient : 3850 ppm/K
Lead Wire : Ag (Silver)-Pd (Palladium) Alloy
Connection Method : Soft Soldering

| Tolerance class F 0.3 over the temperature range –196 ˚C to +150 ˚C

Name Order number Dimensions in mm Self-heating Response time in seconds
Type Design Nominal
resistance		 Plastic box / Plastic bag L W H LL LØ Ice water 0˚C
in K/mW		 Water: v = 0.4 m/s Air: v = 2 m/s
t₀.₅ t₀.₉ t₀.₅ t₀.₉
C 420 Pt 1000 32207502 3.9 1.9 1.0 15 0.25 0.3 0.08 0.25 3.50 15
C 220 Pt 100 32207399 2.3 1.9 1.0 10 0.25 0.4 0.06 0.20 3.00 13
※ Tolerances in mm

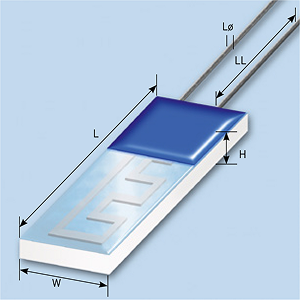

L: ±0.15, W: ±0.2, H: +0.3/–0.2, LL: ±1.0, L∅: ±0.02
