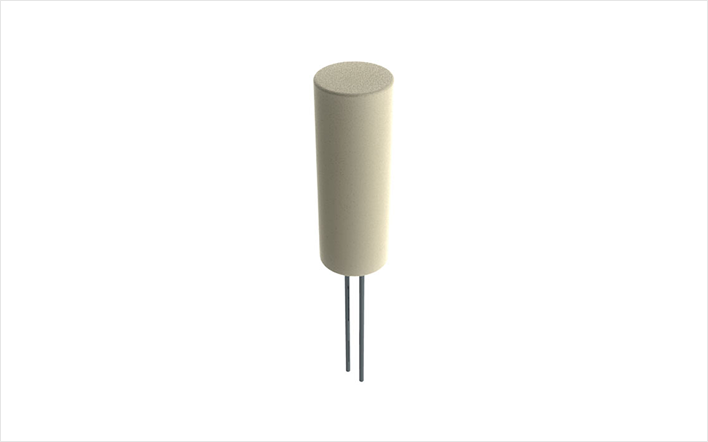

Lead Wire Type MR 828 and 845

CATALOG
Applications Materials and Construction Specifications
Applications
Analytical & Medical Equipment, Chemical Plants, Machinery Equipment
Materials and Construction
Temperature Range : -70℃ ~ +500℃ (B Class)
Standard Specification : DIN EN 60751
Tolerance Class : Class F 0.3 (B Class)
Temperature Coefficient : 3850 ppm/K
Lead Wire : Pt clad Ni wire (Nickel wire platinum coated)
Connection Method : Welding, Brazing, Crimping

| Tolerance Class F 0.3 over the temperature range –70 °C to +500 °C

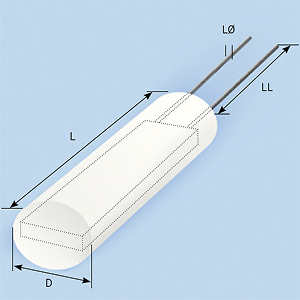

Name Order number Dimensions in mm Self-heating Response time in seconds
Type Design Nominal resistance Blister reel in mm Ice water 0 °C
in K/mW		 Water: v = 0.4 m/s Air: v = 2 m/s
t₀.₅ t₀.₉ t₀.₅ t₀.₉
MR 828 Pt 100 32209340 L = 8 D = 2.8 / LL = 6 / LØ = 0.2 0.05 0.9 2.7 12.3 39.5
MR 828 Pt 1000 32209342 L = 8 D = 2.8 / LL = 6 / LØ = 0.2 0.05 0.9 2.7 12.3 39.5
MR 828 2 Pt 100 32209343 L = 8 D = 2.8 / LL = 6 / LØ = 0.2 0.16 0.9 2.7 12.3 39.5
※ Tolerances in mm
L: ±0.25, D: ±0.3, LL: +2/–1, L∅: ±0.01
