PT Sensor

PT Sensor

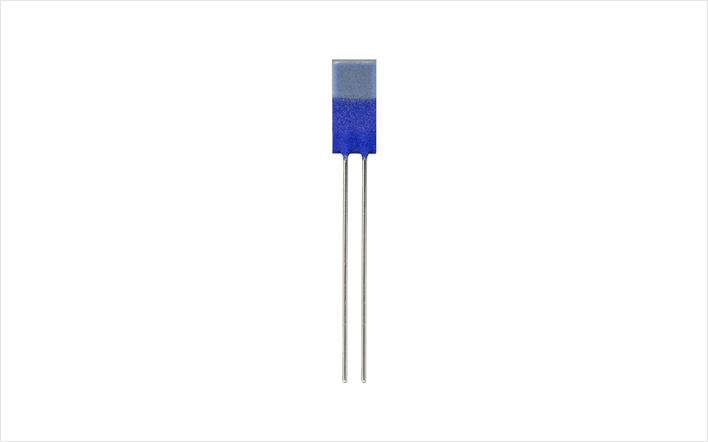

Lead Wire Type M (Medium)

CATALOG
Applications Materials and Construction Specifications
Applications
Automotive, Home Appliances, Energy, Medical and All Industries
Materials and Construction

Temperature Range

  • : -0℃ ~ +150℃ (1/3 Class)
  • : -50℃ ~ +300℃ (A Class)
Standard Specification : DIN EN 60751

Tolerance Class

  • : Class F 0.1 (1/3 Class)
  • : Class F 0.15 (A Class)
  • : Class F 0.3 (B Class)
Temperature Coefficient : 3850 ppm/K
Lead Wire : Pt coated Ni wire (Nickel wire platinum coated)
Connection Method : Welding, Brazing, Crimping

| Tolerance Class F 0.3 over the temperature range –70 ˚C to +500 ˚C, TK 3850

Name Order number Dimensions in mm Self-heating Response time in seconds
Type Design Nominal
resistance		 Blister reel Plastic bag L W H LL LØ Ice water 0˚C
in K/mW		 Water: v = 0.4 m/s Air: v = 2 m/s
t₀.₅ t₀.₉ t₀.₅ t₀.₉
M1020Pt 10032208280322081809.51.90.9100.20.20.100.304.012
M1020Pt 100032208286322081919.51.90.9100.20.20.100.304.012
M620Pt 2000322085415.92.10.9100.20.30.080.253.711.5
M422Pt 10032208520322083923.92.10.9100.20.30.070.203.211
M422Pt 50032208523322084143.92.10.9100.20.30.070.203.211
M422Pt 100032208526322084993.92.10.9100.20.30.070.203.211
M416Pt 10032208278322082133.91.50.9100.20.40.060.183.110.5
M310Pt 1003220872150142523.01.00.8100.150.40.040.122.58
M310Pt 10003220872350142533.01.00.8100.150.40.040.122.58
M222Pt 10032208718322085482.32.10.9100.20.40.050.153.010
M222Pt 500322087062.32.10.9100.20.40.050.153.010
M222Pt 1000322085712.32.10.9100.20.40.050.153.010
M220Pt 10032208440322087142.31.90.9100.20.40.050.153.010
M213Pt 100322076901.71.250.8100.150.60.040.122.27
M213Pt 1000322076951.71.250.8100.150.60.040.122.27

| Tolerance Class F 0.15 over the temperature range –50 ˚C to +300 ˚C, TK 3850

Name Order number Dimensions in mm Self-heating Response time in seconds
Type Design Nominal
resistance		 Blister reel Plastic bag L W H LL LØ Ice water 0˚C
in K/mW		 Water: v = 0.4 m/s Air: v = 2 m/s
t₀.₅ t₀.₉ t₀.₅ t₀.₉
M 1020 Pt 100 32208429 9.5 1.9 0.9 10 0.2 0.2 0.10 0.30 4.0 12
M 1020 Pt 1000 32208439 9.5 1.9 0.9 10 0.2 0.2 0.10 0.30 4.0 12
M 422 Pt 100 32208521 32208498 3.9 2.1 0.9 10 0.2 0.3 0.07 0.20 3.2 11
M 422 Pt 500 32208524 32208501 3.9 2.1 0.9 10 0.2 0.3 0.07 0.20 3.2 11
M 422 Pt 1000 32208527 32208503 3.9 2.1 0.9 10 0.2 0.3 0.07 0.20 3.2 11
M 416 Pt 100 32208279 32208216 3.9 2.1 0.9 10 0.2 0.4 0.06 0.18 3.1 10.5
M 310 Pt 100 32208725 5014254 3.0 1.0 0.8 10 0.15 0.4 0.04 0.12 2.5 8
M 310 Pt 1000 32208727 5014255 3.0 1.0 0.8 10 0.15 0.4 0.04 0.12 2.5 8
M 222 Pt 100 32208550 2.3 2.1 0.9 10 0.2 0.4 0.05 0.15 3.0 10
M 222 Pt 1000 32208572 2.3 2.1 0.9 10 0.2 0.4 0.05 0.15 3.0 10
M 220 Pt 100 32208465 32208715 2.3 1.9 0.9 10 0.2 0.4 0.05 0.15 3.0 10
M 213 Pt 100 32207691 1.7 1.25 0.8 10 0.15 0.6 0.04 0.12 2.2 7

| Tolerance Class F 0.1 over the temperature range 0 ˚C to +150 ˚C, TK 3850

Name Order number Dimensions in mm Self-heating Response time in seconds
Type Design Nominal
resistance		 Blister reel Plastic bag L W H LL LØ Ice water 0˚C
in K/mW		 Water: v = 0.4 m/s Air: v = 2 m/s
t₀.₅ t₀.₉ t₀.₅ t₀.₉
M 1020 Pt 100 32208429 9.5 1.9 0.9 10 0.2 0.2 0.10 0.30 4.0 12
M 1020 Pt 1000 32208483 9.5 1.9 0.9 10 0.2 0.2 0.10 0.30 4.0 12
M 422 Pt 100 32208522 32208500 3.9 2.1 0.9 10 0.2 0.3 0.07 0.20 3.2 11
M 422 Pt 500 32208502 3.9 2.1 0.9 10 0.2 0.3 0.07 0.20 3.2 11
M 422 Pt 1000 32208537 3.9 2.1 0.9 10 0.2 0.3 0.07 0.20 3.2 11
M 416 Pt 100 32208217 3.9 1.5 0.9 10 0.2 0.4 0.06 0.18 3.1 10.5
M 222 Pt 100 32208551 2.3 2.1 0.9 10 0.2 0.4 0.05 0.15 3.0 10
M 222 Pt 1000 32208707 2.3 2.1 0.9 10 0.2 0.4 0.05 0.15 3.0 10
M 222 Pt 100 32208466 2.3 1.9 0.9 10 0.2 0.4 0.05 0.15 3.0 10
M 213 Pt 100 32207692 1.7 1.25 0.8 10 0.15 0.6 0.04 0.12 2.2 7
※ Tolerances in mm
L: ±0.15, W: ±0.2, H: +0.3/–0.2, LL: ±1.0, L∅: ±0.02
