PT Sensor

PT Sensor

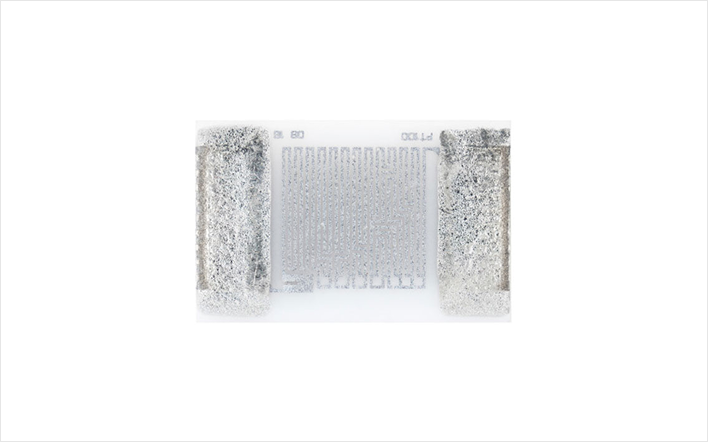

SMD-FC

CATALOG
Applications Materials & Structure Specifications
Applications
Hybrid circuits
Materials & Structure
Temperature Range : -50℃ ~ +150℃ (B / 2B Class)
Standard Specification : DIN EN 60751
Tolerance : Class F 0.3 (B Class)
Temperature Coefficient : 3850 ppm/K
Connection Method : Silver alloy

| Tolerance Class F 0.6 over the temperature range -50 °C to +150 °C*; R0: ±0.24 %, Face up

Name Order number Dimensions in mm Self-heating Response time in seconds
Type Design Nominal
resistance		 Blister reel L W H D Ice water 0 °C
in K/mW		 Water: v = 0.4 m/s Air: v = 2 m/s
t₀.₅ t₀.₉ t₀.₅ t₀.₉
SMD 0805 FC Pt 100 32208595 2.1 1.35 0.4 0.4 0.8 0.10 0.25 2.5 8
SMD 0805 FC Pt 1000 32208570 2.1 1.35 0.4 0.4 0.8 0.15 0.25 2.5 8

| Tolerance Class F 0.3 over the temperature range -50 °C to +150 °C*; R0: ± 0.12 %, Face up

Name Order number Dimensions in mm Self-heating Response time in seconds
Type Design Nominal
resistance		 Blister reel L W H D Ice water 0 °C
in K/mW		 Water: v = 0.4 m/s Air: v = 2 m/s
t₀.₅ t₀.₉ t₀.₅ t₀.₉
SMD 0805 FC Pt 100 32208594 2.1 1.35 0.4 0.4 0.8 0.10 0.25 2.5 8
SMD 0805 FC Pt 1000 32208569 2.1 1.35 0.4 0.4 0.8 0.15 0.25 2.5 8
※ Tolerances in mm

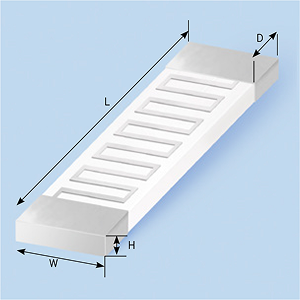

L: ±0.25, D: ±0.3, LL: +2/–1, L∅: ±0.01
