T/C Extension & Compensating Wires

Thermocouple Duplex Wire

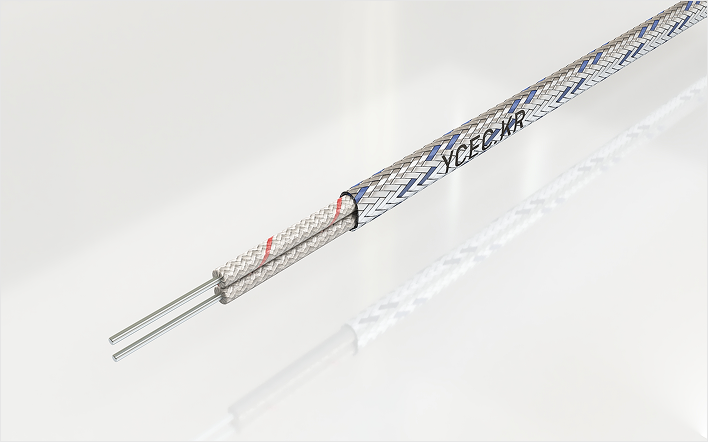

Glass Fiber, Shield | PSC-S

Applicable Standard
KS C 1609 (Compensating Cables for Thermocouples)
Operating Temperature
0~200℃
CATALOG
Features & Applications Materials & Structure Specifications
Features
This product uses glass braided insulation with tin-plated copper braid shielding.
It offers excellent heat resistance, making it suitable for high-temperature environments while maintaining stable insulation performance.
It has excellent chemical resistance and withstands general chemicals and contaminants well.
It is not suitable for water resistance, so insulation performance may deteriorate when used for long periods in humid environments.
Applications / Industries
Mainly used for short-distance extension and applications requiring precise measurement.
Unlike compensating cables, thermocouple wires can also be used as sensors due to differences in accuracy and standards.
Widely used in manufacturing equipment, boilers, heater sections, and laboratory devices.
Materials & Structure
Conductor : Conductor type according to thermocouple type
Insulation : Glass Fiber / Color ((+) red stripe, (-) white)
Shield : Tin-plated copper braid
Cross Section
Product Name / Type Conductor Construction Insulation Thickness
(mm)		 Sheath Thickness
(mm)		 Overall Diameter
(mm)		 Weight
(kg/200M)
PSC-(Type)1-S 1/0.6 0.3 0.3 1.8 X 3.0 3.6
PSC-(Type)2-S 1/0.32 0.3 0.3 1.52 X 2.44 2.6
