T/C Extension & Compensating Wires

Thermocouple Duplex Wire

Fluoropolymer | PSC-T

Applicable Standard
KS C 1609 (Compensating Extension Cables for Thermocouples)
Operating Temperature
-80~200℃
CATALOG
Product Features & Applications Materials & Structure Specifications
Product Features
Product with fluororesin (FEP) insulation and sheath.
Excellent heat resistance, maintaining insulation performance and physical stability even in high-temperature environments.
Outstanding chemical resistance, offering strong resistance to most chemicals including acids and alkalis, ensuring stability even in corrosive environments.
Excellent water resistance, maintaining stability in humid environments.
High abrasion resistance, reducing the risk of physical damage.
Applications / Industries
Mainly used for short-distance extension and applications requiring precise measurement.
Unlike compensating cables, thermocouple wires can also be used as sensors due to differences in accuracy and standards.
Widely used in manufacturing equipment, boiler and heater sections, and laboratory devices.

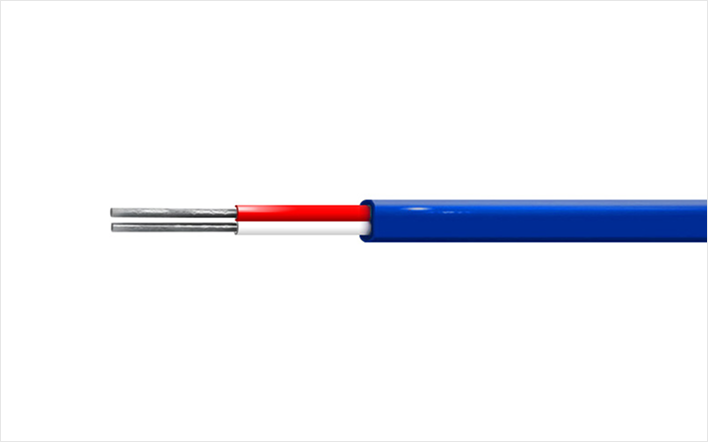

Materials & Structure
Conductor : Conductor material by thermocouple type
Insulation : Fluororesin (FEP) / Color ((+) Red, (-) White)
Sheath : Fluororesin (FEP) / Color (According to compensating cable color code)
Product Name / Type Conductor Construction
(No./mm)		 Insulation Thickness
(mm)		 Sheath Thickness
(mm)		 Overall Diameter
(mm)		 Weight
(kg/200M)
PSC-(Type)1-T 1/0.6 0.2 0.3 1.6 X 2.6 2.3
PSC-(Type)2-T 1/0.32 0.15 0.2 1.0X 1.6 0.8
